Redding Type S - Match Full Die Set - .300 PRC

Available On Backorder
SKU
red-36776

Type S – Bushing Full sizing Die
Competition Seating Die

£291.00

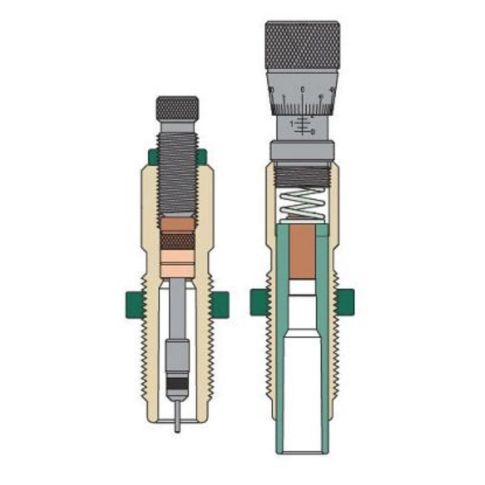

Type S - Match Bushing Full Die Set

The Redding Type S - Match Bushing Full Die Set allows for precise control over case sizing and seating depth. The amount of resizing provided by conventional reloading dies has always been dictated by the manufacturing tolerances (SAAMI specifications) of the brass cartridge case itself. Reloading die manufacturers have been forced to design the neck diameter of their dies small enough to accommodate the thinnest possible brass and that can be as much as .008" - .010" smaller than the maximum cartridge dimensions typically shown in most reloading manuals. Since the majority of cases that the reloader is likely to encounter in the field are thicker than the minimum specifications that the dies were designed for, case necks are often resized excessively. It can be easily demonstrated that excessive resizing of the cartridge case quickly leads to stress distortion and concentricity problems. The Type S - Bushing Style Dies offer a simple solution to this age old problem.

Type S dies use interchangeable sizing bushings available in .001" increments. These dies allow for enhanced concentricity as the resizing bushing can self-center on the case neck. When used in conjunction with Redding's Competition Shellholder Set, Instant Indicator Tool, and Case Neck Concentricity Gauge the Type S - Match Bushing Full Die Set is capable of producing ammunition that exhibits minimum headspace and bullet runout while allowing for precise control over the bullet seating depth.

All dies are supplied without bushings.

Competition Bullet Seating Die

This patented design quickly established itself as the “state of the art” in straight line bullet seaters and beat the concentricity problems inherent in all other seating dies of this type.

Tighter manufacturing tolerances were made possible due to the details of the floating seating stem system. The bullet guide to seating stem fit is so precise that the seating stem can actually be demonstrated to “float” on a column of air. The seating stem is precision ground to exactly match the bullet diameter.

Alignment and accuracy are enhanced by the cartridge case and bullet being completely supported and aligned in a close fitting, precision ground sleeve before the bullet seating begins.

The micrometer is calibrated in .001″ increments for precise seating depth and is infinitely adjustable. The micrometer also has a feature that allows you to re-set it to your favorite seating depth.

No seating die on the market is built to this level of precision. For ordering numbers see chart below.

More Information
Calibre.300 PRC
Type of productBushing Full Length Sets [Type-S & Match]
Barcode611760367762
SKUred-36776
BrandRedding
Ratings & Reviews

Be the first to review this product

FAQ - Frequently Asked Questions

Welcome to our purchasing FAQ! Here you'll find answers to our most asked questions regarding purchasing from us. If you are after Reloading FAQ's, please click HERE, where you can find more specific question and answers. Still can't find quite what you're looking for, or have something we should know? Send us an email, we're happy to help!

  • Q1: Do you ship to my country?

    A1: European countries (All items except Ammunition, Powders, Primer, Cases & Projectiles)

  • Q2: How much do I pay for shipping?

    A2: The shipping charge will be added to your order and visible on your receipt before you check out. The shipping is based on the destination country. You’ll get free shipping on orders above a certain amount.

    Free shipping on orders above: £50 for mainland UK next day deliveries.

    France - £25
    Norway – £45
    Finland – £46
    Germany – £25
    UK – £5 (Free UK Mainland with purchases over £50)
    Rest of the EU – £25-100
    Global – £100-200

  • Q3: What are the accepted payment methods?

    A3: We accept online card payment with MasterCard, VISA, Worldpay or Bank Direct Debit

  • Q4: What currency do I pay in?

    A4: The currencies used are GBP, EUR & USD The currency is chosen automatically depending on your shipping country.

  • Q5: When do I receive my order?

    A5: We dispatch all orders in 1-2 business days with DPD & Parcelforce, delivery time will depend on the shipping country and address.

  • Q6: Do I have to pay international taxes and duties?

    A6: Your order may be subject to import duties and taxes, which are levied once a shipment reaches your country. We cannot control and is not responsible for any duties/taxes applied to your package upon delivery. You will be responsible for paying additional charges for customs clearance. Customs policies vary widely from country to country; please contact your local customs office for further information.

  1. Set up your reloading bench where it (and stored components) will not be exposed to heat, sparks or flame.
  2. Establish a comfortable loading procedure and don't vary it.
  3. Keep your reloading bench, equipment and area clean and uncluttered. Label components and reloads for safe, easy identification. Never use powder from an unlabelled tin.
  4. Understand what you are doing and why it must be done in a specific way.
  5. Follow loading recommendations exactly. Don't substitute components for those listed in metallic data without reducing the load and working back up.
  6. Never substitute smokeless powder for black powder or Pyrodex because smokeless powder is much more powerful than black powder. Never mix two powders together.
  7. Wear safety glasses.
  8. Stay alert when reloading. Don't reload when distracted, disoriented or tired.
  9. Don't smoke, drink alcohol or take drugs while reloading or while in your reloading area.
  10. Keep everything out of reach of small children.
Rifle Calibre Name Common Metric Name Bullet Diameter
.17 4.5mm .172"
.204 5.2mm .204"
.223 5.56mm .224"
.22 (Rimfire) 5.6mm .223"
.22 (Centrefire) 5.6mm .224"
.243 6mm .243"
.257 6.53mm .257"
.260 6.5mm .264"
.270 6.8mm .277"
.280 7mm .284"
.30 7.62mm .308"
.325 8mm .323"
.33 8.6mm .338"
.366 9.3mm .366
.375 9.5mm .375"
.416 10.6mm .416"
.50 13mm .510"
