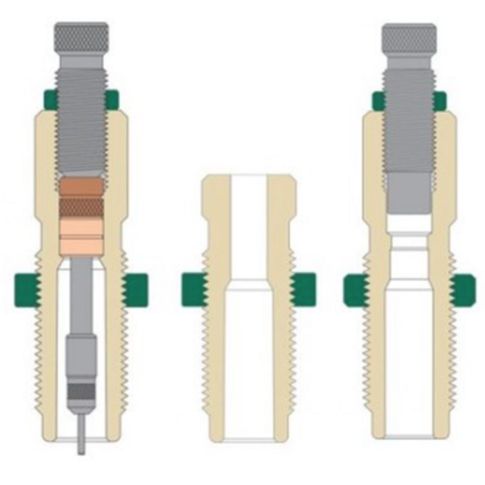

Set contains:
- Type S – Bushing Neck sizing Die
- Body Die
- Regular Series 9200 Seating Die
Type S – Neck Bushing Die
The Type S - Bushing Style Dies, Competition Seating and Neck Sizing Dies, Body Dies and our New Competition Shellholders are all products of Benchrest and 1000 yard Competition.
The new Type S - Bushing Style Neck Sizing Die provides reloaders with a simple means to precisely control case neck size and tension.
- Uses interchangeable sizing bushings available in .001" increments.
- The adjustable decapping rod allows positioning the bushing to resize only a portion of the neck length if desired.
- Concentricity is enhanced by the ability of the resizing bushing to selfcenter
- on the case neck.
- The decapping rod is supplied with a standard size button. This is especially useful for reloaders who are using commercial brass as is.
- A decapping pin retainer is also supplied with most Type S - Bushing Dies except 17 and 20 Cal. This enables neck sizing without the use of the size button for those who sort and/or turn case necks for uniformity.
All dies are supplied without bushings.
Now anyone with a standard reloading press can benefit from advanced benchrest techniques.
The amount of resizing provided by conventional reloading dies has always been dictated by the manufacturing tolerances (SAAMI specifications) of the brass cartridge case itself. Reloading die manufacturers have been forced to design the neck diameter of their dies small enough to accommodate the thinnest possible brass.
This may be as much as .008" - .010" smaller than the maximum cartridge dimensions typically shown in most reloading manuals.
Since the majority of cases that the reloader is likely to encounter in the field are thicker than the minimum specifications that the dies were designed for, case necks are often resized excessively.
It can be easily demonstrated that excessive resizing of the cartridge case quickly leads to stress distortion and concentricity problems. The new Type S - Bushing Style Dies offer a simple solution to this age old problem.
BODY DIE
Body Dies are designed to full length resize the case body, bump the shoulder position for proper chambering, but not size the neck at all. They are made without internal parts and are intended for resizing cases which have become increasingly difficult to chamber after repeated firing. After using a body die, the case should be run through the neck die to achieve proper neck tension. Sold separately or as part of a set.
SEATING DIE (9200 SERIES)
The Redding Seating Die includes bullet guide, built-in crimp ring and the proper seating plug. All dies are made using the finest alloy steels obtainable and machined on Harding Super-Precision lathes capable of holding the tightest tolerances in the industry. Heat treated in atmospherically controlled furnaces and hand polished for smooth, flawless functioning, these dies will maintain tolerances and last a lifetime. Inspected and ultrasonically cleaned before packaging.
Calibre | .257 Roberts |
---|---|
Type of product | Bushing Neck Sizer Sets [Type-S & Match] |
Barcode | 78125 |
SKU | red-78125 |
Brand | Redding |
FAQ - Frequently Asked Questions
Welcome to our purchasing FAQ! Here you'll find answers to our most asked questions regarding purchasing from us. If you are after Reloading FAQ's, please click HERE, where you can find more specific question and answers. Still can't find quite what you're looking for, or have something we should know? Send us an email, we're happy to help!
-
Q1: Do you ship to my country?
A1: European countries (All items except Ammunition, Powders, Primer, Cases & Projectiles)
-
Q2: How much do I pay for shipping?
A2: The shipping charge will be added to your order and visible on your receipt before you check out. The shipping is based on the destination country. You’ll get free shipping on orders above a certain amount.
Free shipping on orders above: £50 for mainland UK next day deliveries.
France - £25
Norway – £45
Finland – £46
Germany – £25
UK – £5 (Free UK Mainland with purchases over £50)
Rest of the EU – £25-100
Global – £100-200 -
Q3: What are the accepted payment methods?
A3: We accept online card payment with MasterCard, VISA, Worldpay or Bank Direct Debit
-
Q4: What currency do I pay in?
A4: The currencies used are GBP, EUR & USD The currency is chosen automatically depending on your shipping country.
-
Q5: When do I receive my order?
A5: We dispatch all orders in 1-2 business days with DPD & Parcelforce, delivery time will depend on the shipping country and address.
-
Q6: Do I have to pay international taxes and duties?
A6: Your order may be subject to import duties and taxes, which are levied once a shipment reaches your country. We cannot control and is not responsible for any duties/taxes applied to your package upon delivery. You will be responsible for paying additional charges for customs clearance. Customs policies vary widely from country to country; please contact your local customs office for further information.
Rifle Calibre Name | Common Metric Name | Bullet Diameter |
.17 | 4.5mm | .172" |
.204 | 5.2mm | .204" |
.223 | 5.56mm | .224" |
.22 (Rimfire) | 5.6mm | .223" |
.22 (Centrefire) | 5.6mm | .224" |
.243 | 6mm | .243" |
.257 | 6.53mm | .257" |
.260 | 6.5mm | .264" |
.270 | 6.8mm | .277" |
.280 | 7mm | .284" |
.30 | 7.62mm | .308" |
.325 | 8mm | .323" |
.33 | 8.6mm | .338" |
.366 | 9.3mm | .366 |
.375 | 9.5mm | .375" |
.416 | 10.6mm | .416" |
.50 | 13mm | .510" |
