REDDING TYPE S-BUSHING FULL SIZING DIE - .17 REM FIREBALL

Available On Backorder
SKU
red-77204

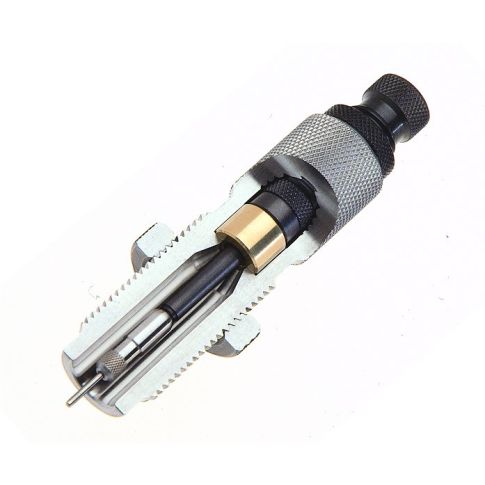

Type S – Full Bushing Die

Full length resizing while maintaining exact control of the case neck is often desirable in one operation. The new Type S – Full Length Resizing/Bushing Die accomplishes this task with the precision you would expect from Redding.

  • Uses the same interchangeable bushings (.001″ increments) as those used in our bushing style neck sizing dies.
  • The adjustable decapping rod allows you to adjust the bushing position, sizing only part of the neck length when desire d .
  • Concentricity is enhanced by the ability of the bushing to self-center on the neck of the cartridge case.
  • All Type S (except 17 and 20 Cal.) dies are supplied with both the standard size button and a decapping pin retainer for the advantages and versatility described under our Type S – Bushing  Style Neck Sizing Dies.

Note: By removing the bushing and all internal parts, the Type-S full bushing die may also be used as a body die.

All dies are supplied without bushings.

Now anyone with a standard reloading press can benefit from advanced benchrest techniques.

The amount of resizing provided by conventional reloading dies has  always been dictated by the manufacturing tolerances (SAAMI specifications) of the brass cartridge case itself. Reloading die  manufacturers have been forced to design the neck diameter of their dies small enough to accommodate the thinnest possible brass.

This may be as much as .008″ – .010″ smaller than the maximum cartridge dimensions typically shown in most reloading manuals.

Since the majority of cases that the reloader is likely to encounter in the field are thicker than the minimum specifications that the dies were designed for, case necks are often  resized excessively.

It can be easily demonstrated that excessive resizing of the cartridge case quickly leads to stress distortion and concentricity problems. The new Type S – Bushing Style Dies offer a simple solution to this age old problem.



£84.99
More Information
Calibre.17 Rem Fireball
Type of productBushing Full Length Sizers
Barcode77204
SKUred-77204
BrandRedding
Ratings & Reviews

Be the first to review this product

FAQ - Frequently Asked Questions

Welcome to our purchasing FAQ! Here you'll find answers to our most asked questions regarding purchasing from us. If you are after Reloading FAQ's, please click HERE, where you can find more specific question and answers. Still can't find quite what you're looking for, or have something we should know? Send us an email, we're happy to help!

  • Q1: Do you ship to my country?

    A1: European countries (All items except Ammunition, Powders, Primer, Cases & Projectiles)

  • Q2: How much do I pay for shipping?

    A2: The shipping charge will be added to your order and visible on your receipt before you check out. The shipping is based on the destination country. You’ll get free shipping on orders above a certain amount.

    Free shipping on orders above: £50 for mainland UK next day deliveries.

    France - £25
    Norway – £45
    Finland – £46
    Germany – £25
    UK – £5 (Free UK Mainland with purchases over £50)
    Rest of the EU – £25-100
    Global – £100-200

  • Q3: What are the accepted payment methods?

    A3: We accept online card payment with MasterCard, VISA, Worldpay or Bank Direct Debit

  • Q4: What currency do I pay in?

    A4: The currencies used are GBP, EUR & USD The currency is chosen automatically depending on your shipping country.

  • Q5: When do I receive my order?

    A5: We dispatch all orders in 1-2 business days with DPD & Parcelforce, delivery time will depend on the shipping country and address.

  • Q6: Do I have to pay international taxes and duties?

    A6: Your order may be subject to import duties and taxes, which are levied once a shipment reaches your country. We cannot control and is not responsible for any duties/taxes applied to your package upon delivery. You will be responsible for paying additional charges for customs clearance. Customs policies vary widely from country to country; please contact your local customs office for further information.

  1. Set up your reloading bench where it (and stored components) will not be exposed to heat, sparks or flame.
  2. Establish a comfortable loading procedure and don't vary it.
  3. Keep your reloading bench, equipment and area clean and uncluttered. Label components and reloads for safe, easy identification. Never use powder from an unlabelled tin.
  4. Understand what you are doing and why it must be done in a specific way.
  5. Follow loading recommendations exactly. Don't substitute components for those listed in metallic data without reducing the load and working back up.
  6. Never substitute smokeless powder for black powder or Pyrodex because smokeless powder is much more powerful than black powder. Never mix two powders together.
  7. Wear safety glasses.
  8. Stay alert when reloading. Don't reload when distracted, disoriented or tired.
  9. Don't smoke, drink alcohol or take drugs while reloading or while in your reloading area.
  10. Keep everything out of reach of small children.
Rifle Calibre Name Common Metric Name Bullet Diameter
.17 4.5mm .172"
.204 5.2mm .204"
.223 5.56mm .224"
.22 (Rimfire) 5.6mm .223"
.22 (Centrefire) 5.6mm .224"
.243 6mm .243"
.257 6.53mm .257"
.260 6.5mm .264"
.270 6.8mm .277"
.280 7mm .284"
.30 7.62mm .308"
.325 8mm .323"
.33 8.6mm .338"
.366 9.3mm .366
.375 9.5mm .375"
.416 10.6mm .416"
.50 13mm .510"
