Available January 2019 – select calibers made from U.S. Sold Brass bar stock. An upgrade to our standard steel line. Brass has good corrosion resistance and an excellent surface finish, perfect for gaging your cases. Be one of the first to own one of these fine gage. Ask your preferred Wilson dealer for more information.

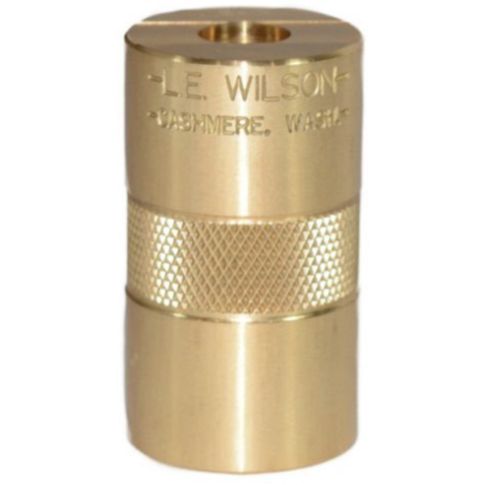

Brass Case Gage
Available January 2019 - select calibers made from U.S. Sold Brass bar stock. An upgrade to our standard steel line. Brass has good corrosion resistance and an excellent surface finish, perfect for gaging your cases. Be one of the first to own one of these fine gage. Ask your preferred Wilson dealer for more information.
One piece gage that will check overall length to indicate the need for trimming, datum to head length to assure correct headspace and to prevent over sizing. Available for most popular rimless cases. The Cartridge Case Gage was designed with safety in mind and was invented by our founder Sam (L.E.) Wilson in 1935 after a fellow shooter approached him for help in solving a case-separation issue. The gage allows you to see just how much you are sizing back your shoulder on your cases.
This is best done by following the steps below.
Measure a case in AS-FIRED condition
Take a measurement
Resize case on current die setting
Then place back in the gage to see just how much you are sizing the shoulder back. This can be done by using the Case Gage Depth Micrometer
Finally, adjust sizing die accordingly to desired shoulder set back.
After sizing your cases, there is a good chance the brass will lengthen. The gage will also check min/max case length and will point out the need for case trimming. This is an essential tool for every reloader.
Note: Does not measure body diameters. This gage is intended to be used with fired cases to determine a basis for full length sizing and trimming.
Type of product | Headspace Measuring |
---|---|
Calibre | .224 Valkyrie |
Barcode | CGB-224V |
SKU | wils-CGB-224V |
Brand | Wilson Tools & Gauges |
FAQ - Frequently Asked Questions
Welcome to our purchasing FAQ! Here you'll find answers to our most asked questions regarding purchasing from us. If you are after Reloading FAQ's, please click HERE, where you can find more specific question and answers. Still can't find quite what you're looking for, or have something we should know? Send us an email, we're happy to help!
-
Q1: Do you ship to my country?
A1: European countries (All items except Ammunition, Powders, Primer, Cases & Projectiles)
-
Q2: How much do I pay for shipping?
A2: The shipping charge will be added to your order and visible on your receipt before you check out. The shipping is based on the destination country. You’ll get free shipping on orders above a certain amount.
Free shipping on orders above: £50 for mainland UK next day deliveries.
France - £25
Norway – £45
Finland – £46
Germany – £25
UK – £5 (Free UK Mainland with purchases over £50)
Rest of the EU – £25-100
Global – £100-200 -
Q3: What are the accepted payment methods?
A3: We accept online card payment with MasterCard, VISA, Worldpay or Bank Direct Debit
-
Q4: What currency do I pay in?
A4: The currencies used are GBP, EUR & USD The currency is chosen automatically depending on your shipping country.
-
Q5: When do I receive my order?
A5: We dispatch all orders in 1-2 business days with DPD & Parcelforce, delivery time will depend on the shipping country and address.
-
Q6: Do I have to pay international taxes and duties?
A6: Your order may be subject to import duties and taxes, which are levied once a shipment reaches your country. We cannot control and is not responsible for any duties/taxes applied to your package upon delivery. You will be responsible for paying additional charges for customs clearance. Customs policies vary widely from country to country; please contact your local customs office for further information.
Rifle Calibre Name | Common Metric Name | Bullet Diameter |
.17 | 4.5mm | .172" |
.204 | 5.2mm | .204" |
.223 | 5.56mm | .224" |
.22 (Rimfire) | 5.6mm | .223" |
.22 (Centrefire) | 5.6mm | .224" |
.243 | 6mm | .243" |
.257 | 6.53mm | .257" |
.260 | 6.5mm | .264" |
.270 | 6.8mm | .277" |
.280 | 7mm | .284" |
.30 | 7.62mm | .308" |
.325 | 8mm | .323" |
.33 | 8.6mm | .338" |
.366 | 9.3mm | .366 |
.375 | 9.5mm | .375" |
.416 | 10.6mm | .416" |
.50 | 13mm | .510" |
