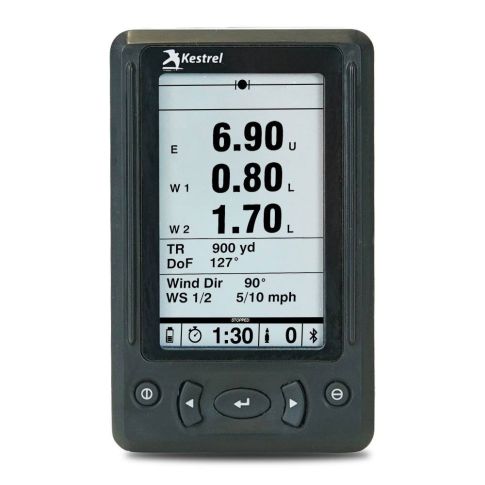

View critical target data and information without ever coming out of the scope. The Kestrel HUD is a gun-mounted display that gives you instant access to real-time shooting solutions from your Kestrel 5700. The 2.5" screen puts bold, sunlight-readable numbers right in your line of sight - maximizing your focus for effective rapid engagement of multiple targets.

The brand new Kestrel HUD wirelessly connects to your Kestrel Ballistics Meter so you can easily see shooting solutions forup to 10 targets on aclear, convenient, gun mounted display, providing the fastest, most accessible targeting solution data available. Spotters can feed shooters updated target data on the fly and stage data is ready on the HUD as soon as it's entered into the Kestrel. No more markers and masking tape! Let the Kestrel HUD do the job of managing your target data so you can focus on shooting and hitting more targets.

The Kestrel HUD Heads Up Display wirelessly connects to Kestrel 5700 Ballistics Weather Meters via LiNK Bluetooth Low Energy wireless technology.

The HUD connects to the Kestrel LiNK Ballistics app for iOS and Android for firmware updates ONLY.
*You are not able to change HUD settings or access HUD features in the app.

Features & Functions	Kestrel HUD Heads Up Display for 5 Series Ballistics Meters£292.39	Kestrel HUD Heads Up Display for 5 Series Ballistics Meters with Remote£358.34
Picatinny Mount Included	✓	✓
Wired Remote Navigation	Available	Included
Hardwire Connection to LRFs (iCugr, Raptar, Storm) via Y-Remote Cable (when it becomes available for purchase)	Available	Available
Single Target Screen	✓	✓
Timer	✓	✓
Large Font Option	✓	✓
DOPE Range Card Screen	✓(5700 Elite only)	✓(5700 Elite only)
Custom Target Card Screen - View up to 10 Target	✓(5700 Elite only)	✓(5700 Elite only)
Live Updates from Kestrel on Single Target Screen	✓	✓
Backlight	✓	✓



AVAILABLE FEATURES

• Single Target Screen - Displays accurate firing solution along with up-to-date target and environmental details
• Custom Target Card Screen - View up to 10 targets without ever coming out of the scope*
• Large Font Option - Improves visibility and focus on critical data while reducing eye strain. Easy-to-read in direct sunlight and low light conditions.
• Stage Timer - Knowing your progress through a stage lets you make better decisions and hit more targets
• Remote Switch – Switch between targets and send target data to your Kestrel without changing your shooting position
• Live Updates - Target screens display live updates from Kestrel readings for the most relevant, valuable ballistic data
• *DOPE Card Screen - Download full range card specific to your rifle and bullet -- eliminating the need for pen and paper
• *Target Card Screen - View and receive live updates for up to 10 unique targets when paired with 5700 Elite

*5700 Elite unit only

INCLUDED IN THE BOX

• Battery - 1 x AA
• Protective Drawstring Pouch
• Picatinny Rail Mount
• Instructions

SPECS

• Sealing - IP67 Waterproof
• Shock Resistance - Mil-STD-810g shock tested (Transit Shock, method 516.6 Procedure IV)
• Warrantied for use on rifles up to .338” in caliber
• For use with 5700 Ballistics units
• Runs on 1 AA battery (Lithium recommended)
• 80 hours of battery life, reduced by backlight use
• Auto Shutdown – User-selectable – Off, 15-60 min with no key presses
• Designed and built in the USA from US and imported components. Complies with Regional Value Content and Tariff Code Transportation requirements for NAFTA preference Criterion B
• CE certified, RoHS, FCC, IC tested and WEEE compliant
• Display and battery operational temperature limits: 14F – 131F/-10C – 55C
• Storage temperature: -22F – 140F / -30C – 60C
• Size & Weight:
  • HUD alone: 3.5'' L x 2.25'' W x 1.25'' H and 108.55 g or 3.28 oz
  • HUD Mount is 76.45 g or 2.69 oz
  • HUD Remote is 28.75'' long and 61.40 g or 2.16 oz
