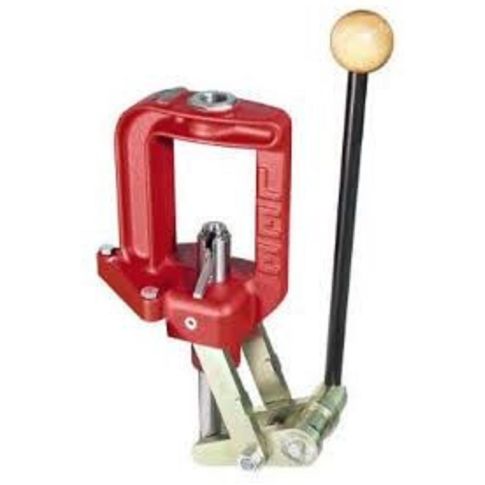

LEE Classic Cast Press
Available On Backorder
SKU's
lee-90998
The largest opening in the industry and the longest stroke-- handle is adjustable to provide the least travel of any press.
Rigid cast iron construction in a classic "O" design for maximum strength. Baked powder coating is durable and makes the Classic Cast a handsome addition to any reloading bench.
Adjustable handle is movable side to side for left or right hand operation. Start and stop position is adjustable with a 48-tooth ratchet type handle clamp. In addition, the handle length is completely adjustable. Shorten it when loading handgun and short rifle cases.
Automatic primer arm with bottom of stroke priming for best feel. Includes two primer arms for large and small primers. No more fumbling with tiny guides and springs.
The original Classic Cast designed to work with large series 1 1/4-12 dies. Includes breech lock quick change adapter and breech lock bushing to accept standard 7/8-14 dies.
Large 1 1/8 diameter ram drilled completely through to allow spent primer disposal direct to trash can with attached tube. Ram is two-piece to allow installation of the mammoth 50 BMG shell holder. All support by over 12 square inches of ram bearing surface.
Accepts standard shell holders, ram insert can be rotated to allow primer installation on right or left side.
Product Information
This single stage press has a rigid, cast iron "O" frame with an attractive baked powder finish, large opening and 4" ram stroke. It features powerful steel compound linkage with travel stop to prevent "cam-over". Also features automatic primer arm with bottom of stroke priming and a large 1-1/8" diameter ram. Includes small and large primer cups. Accepts both standard 7/8"-14 threaded dies and the larger 1-1/4"-12 threaded dies when the 7/8"-14 thread adapter is removed. Adjustable for right or left hand use.Technical InformationPress Type: Single StageFrame Material: Cast Iron
Frame Design: O-Frame
Frame Offset:
Frame Opening Size:
Handle Location: Bottom Right or Left hand use
Die Size Accepted: 1-1/4-12" Threaded Dies, 7/8"-14
Die Bushing Accepted: No
Die Bushing Brand Used:
Spent Primer Collection System: Through a tube that can be directed into a trash can underneath the press
Ram Stroke: 4"
Ram Diameter: 1-1/8"
Priming Feature: Automatic Primer Arm with Bottom of stroke priming
Number of Mounting Holes: 3
Mounting Hardware Included: No
Additional Features:
Notes:
Warranty: 2 Year Unconditional Guarantee
| Type of product | Single Stage Press |
|---|---|
| Barcode | 90998 |
| SKU's | lee-90998 |
| Brand | Lee Precision |
Ratings & Reviews
FAQ - Frequently Asked Questions
Welcome to our purchasing FAQ! Here you'll find answers to our most asked questions regarding purchasing from us. If you are after Reloading FAQ's, please click HERE, where you can find more specific question and answers. Still can't find quite what you're looking for, or have something we should know? Send us an email, we're happy to help!
-
Q1: Do you ship to my country?
A1: European countries (All items except Ammunition, Powders, Primer, Cases & Projectiles)
-
Q2: How much do I pay for shipping?
A2: The shipping charge will be added to your order and visible on your receipt before you check out. The shipping is based on the destination country. You’ll get free shipping on orders above a certain amount.
Free shipping on orders above: £50 for mainland UK next day deliveries.
France - £25
Norway – £45
Finland – £46
Germany – £25
UK – £5 (Free UK Mainland with purchases over £50)
Rest of the EU – £25-100
Global – £100-200 -
Q3: What are the accepted payment methods?
A3: We accept online card payment with MasterCard, VISA, Worldpay or Bank Direct Debit
-
Q4: What currency do I pay in?
A4: The currencies used are GBP, EUR & USD The currency is chosen automatically depending on your shipping country.
-
Q5: When do I receive my order?
A5: We dispatch all orders in 1-2 business days with DPD & Parcelforce, delivery time will depend on the shipping country and address.
-
Q6: Do I have to pay international taxes and duties?
A6: Your order may be subject to import duties and taxes, which are levied once a shipment reaches your country. We cannot control and is not responsible for any duties/taxes applied to your package upon delivery. You will be responsible for paying additional charges for customs clearance. Customs policies vary widely from country to country; please contact your local customs office for further information.
- Set up your reloading bench where it (and stored components) will not be exposed to heat, sparks or flame.
- Establish a comfortable loading procedure and don't vary it.
- Keep your reloading bench, equipment and area clean and uncluttered. Label components and reloads for safe, easy identification. Never use powder from an unlabelled tin.
- Understand what you are doing and why it must be done in a specific way.
- Follow loading recommendations exactly. Don't substitute components for those listed in metallic data without reducing the load and working back up.
- Never substitute smokeless powder for black powder or Pyrodex because smokeless powder is much more powerful than black powder. Never mix two powders together.
- Wear safety glasses.
- Stay alert when reloading. Don't reload when distracted, disoriented or tired.
- Don't smoke, drink alcohol or take drugs while reloading or while in your reloading area.
- Keep everything out of reach of small children.
| Rifle Calibre Name | Common Metric Name | Bullet Diameter |
| .17 | 4.5mm | .172" |
| .204 | 5.2mm | .204" |
| .223 | 5.56mm | .224" |
| .22 (Rimfire) | 5.6mm | .223" |
| .22 (Centrefire) | 5.6mm | .224" |
| .243 | 6mm | .243" |
| .257 | 6.53mm | .257" |
| .260 | 6.5mm | .264" |
| .270 | 6.8mm | .277" |
| .280 | 7mm | .284" |
| .30 | 7.62mm | .308" |
| .325 | 8mm | .323" |
| .33 | 8.6mm | .338" |
| .366 | 9.3mm | .366 |
| .375 | 9.5mm | .375" |
| .416 | 10.6mm | .416" |
| .50 | 13mm | .510" |
