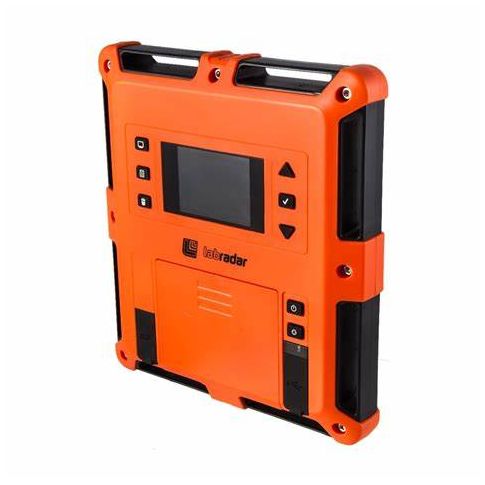

LabRadar was developed by Infinition Inc of Trois-Rivieres, Quebec, Canada. Infinition has been the industry leader in Doppler Radar Technology since 1996 with products being used by defense agencies all over the world. Infinition Inc. has unique expertise in Ballistic Instrumentation Radar Systems and highly sophisticated software for the capture and processing of a ballistic event. High quality innovative products and services, timely delivery and superior customer support have all contributed to gaining customers and establishing our solid worldwide reputation. Our radar systems include the most complex long range multiple target tracking systems to small laboratory range applications capturing tiny projectiles at ultra high velocities. From this technology the creation of LabRadar was developed for everyday use by individuals.

Answers to your Questions

Do you have any videos that show proper setup and operation?
Yes, we have several videos posted on our YouTube. Search YouTube with the keywords "Labradar Channel" or go to the link below.

https://www.youtube.com/channel/UCWLcaC5zBL-ZcdLZS9BRmKg

My Labradar will not tigger
If your Labradar will not trigger it is because it is not armed (light orange) or it is not "feeling" the muzzle blast. Unless you have a muzzle brake on your weapon your muzzle should be even with the side of the unit. This applies to handguns and rifles. Keep the Trigger Level set at 1.

How do I use Labradar with 22 rimfire, Airguns or Suppressors?
Since there is very little muzzle blast pressure emitted from 22 rimfire, Airguns or suppressed firearms you may need to place Labradar approximately 3 inches in front of the muzzle and approximate 3 inches to the side. If your unit still will not trigger due to the low muzzle blast you can purchase the Air Gun Adapter to assist in triggering the radar.

How does LabRadar work?
LabRadar velocity measurements are based on Continuous Wave Doppler Radar and advanced Digital Signal Processing Technologies.

My radar triggers but I do not get a velocity reading.
When you get an error message that the projectile was not acquired it is usually due to poor alignment of the radar or muzzle blast debris interfering with the radar reflecting off of the bullet. To resolve this you can move your muzzle farther forward and farther to the side. Be sure to adjust the Projectile Offset distance when moving farther to the side. You can confirm your alignment by looking through a small diameter tube placed in the sighting notch.

Where should my muzzle be positioned?
Ideally you should place your muzzle even with the side of the unit and between the top and bottom corners. If you have a muzzle brake you should place it a few inches in front of the radar to prevent the direct muzzle blast from impacting the unit. Be sure to set your Projectile Offset to the correct distance in the preferences menu.

Can Labradar be placed downrange
Labradar is designed to set besides the shooter as it is triggered by the weapon muzzle blast. Currently it is not possible to trigger the radar at a downrange location.

Is it Safe to use?
Yes, LabRadar was designed for and is in compliance with the United States FCC Regulations, CE requirements and Canada requirements.

Can I use it at an Indoor Range?
Labradar will work in most indoor ranges. You will need at least 50 feet since the beam is quite small at those distances. It may not work if you are shooting in a tunnel or tube as the radar will be reflecting off of those surfaces.

How accurate is it?
LabRadar has an accuracy of 0.1%.

Will it work in the hot, cold, cloudy, sunny, shade or changing light conditions, rain, indoors, outdoors?
Yes, unlike most light sensing chronographs LabRadar is not affected by these environmental conditions.

If you’re not in the center of the radar beam is the accuracy diminished?
No, but you will be able to track the bullet farther if your in the center of the beam.

Does it work on batteries?
Yes. LabRadar uses 6 AA type batteries. It can also be powered from an external USB power pack.

What range performance can one expect with LabRadar?
In general LabRadar will typically measure the velocity of a 7.62 mm projectile from muzzle up to 100 yards. After extensive testing of a variety of calibers you can expect to obtain velocities at these distances when in the Standard Power Mode. Low Power setting will have about 30% less tracking*.
.177 Pellet - 30 yards;
.177 BB - 30 yards;
22 LR - 60 yards;
223 - 60 yards;
270 - 70 yards;
308 - 80 to 100 yards;
9mm - 130 yards;
40 S&W - 130 yards;
45 ACP - 130 yards;
500 S&W - 130 yards;
12 gauge Slug - 90 yards;
Paint Ball - 50 yards;
Arrows - 50 yards;
* Since every bullet has a different profile your results may vary. In general, the larger the base (excluding the boat tail) the great the distance the projectile can be acquired.

What is the Warranty period?
One year from date of purchase.

What data does LabRadar provide?
LabRadar provides minimum/maximum velocities, extreme spread, average velocity and standard deviation of a shot series. Velocities are constantly tracked and recorded at various distances along the flight path. The user will be able to define the distances he would like the velocities displayed. You will also be able to download all the shot and series data to a CSV file.

How reliable is the LabRadar?
Infinition, the company that created and manufactures the LabRadar has been designing and manufacturing high end instrumentation radars for more than a decade. Infinition’s high end radars are used daily by professionals at various Research Centers, Ballistic Laboratories and Proving Grounds around the world. The LabRadar has been built from the same technology inside Infinition’s high end radars and brings that technology in the hands of the shooters and hunters, providing an accurate and reliable way to measure the velocity of various projectiles.

Can the LabRadar be used with bows and crossbows?
Yes, when used in the Doppler mode the arrow acts as the trigger when it enters the radar beam. This is generally 6-10 feet downrange. It will continue to track the arrow for approximately 60 yards. When in the Trigger Mode an adapter can be used on the bow to communicate with LabRadar. The adapter will trigger the radar in the release of the arrow.

At what distances will LabRadar report velocities
LabRadar will report the muzzle velocity and up to five other velocities at the distances that you select in increments of one (1). You will be able to select these distances prior to shooting. You can select feet, yards, meters, etc. Velocities can also be reported in metric and standard values.

Does LabRadar work with shotguns
Currently LabRadar will obtain velocities from most Slug type projectiles. At this time it will not read multiple pellet projectiles.

Can Labradar be sold outside of the U.S.
Yes, however due to foreign government regulations units sold outside of the United States, Canada and Australia and NZ will be set to the low power setting. The accuracy of Labradar remains the same, but the ability to track the projectile will be reduced by approximately 30%. Currently all units are being sold in the US and Canada. Export sales will begin sometime in 2016.

What is the minimum length Labradar will work
We recommend that Labradar be positioned so it has at least 15 yards before the target. Also due to radar reflections off of side walls it is not recommended for tubes, tunnels or hallways. Labradar works fine in most indoor commercial ranges.

Will LabRdar pick up shot from other shooters?
LabRadar accuracy will not be affected by other shots being fired into your radar beam. Part of the technology built into the system allows it to determine if the shot came from very near the radar unit or if it came in from another location. Since the radar tracking is only active for a fraction of a second it is nearly impossible for you to receive a velocity from another shooter nearby. Your unit also has an adjustment in it to "turn off" most gunshots that are nearby, yet allow your shot to operate the unit. In rare cases your unit may trigger on another shooters muzzle blast. If this occurs you can easily delete that shot from your data.

Where can I obtain a Users Manual
There is a download link on the top right area of the Home Page. With this link you can download the latest Users Manual and firmware upgrades.

How do I start a new series?
If your in the armed view, press and hold the armed button for 2-3 seconds and the Series screen will be displayed. You can now press the New Series button and confirm your desire to start a new series.

How do I get to the Preferences Menu?
Press the top left button if you are in the Series View. If you are in the Armed View press and hold the Armed button for 2-3 seconds and you will be taken to the Series View. You can then press the Preferences Menu button.
