ACCURACY ONE CONCENTRICITY GAUGE
%1 In Stock
SKU's
acc1-concen***
THESE ARE ORDERED IN TO ORDER AND USUALLY TAKE 3 WEEKS

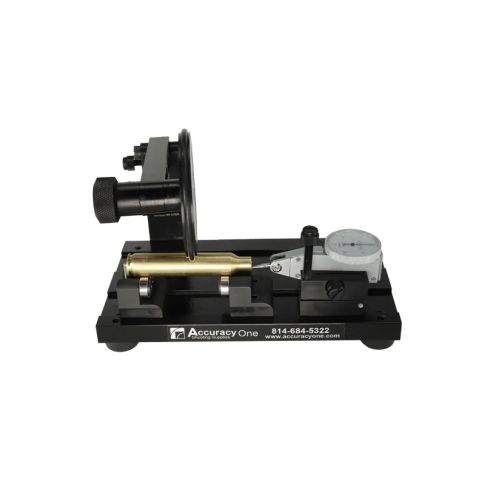

Accuracy One Concentricity Gauge
The Accuracy One Concentricity Gauge allows you to measure the runout of ammunition and ammunition components.
The Concentricity Gauge measures the internal and external neck runout of your cartridge case as well as seated bullet runout. It can also measure the runout of the ogive, bearing surface and boat-tail of individual bullets and can even measure your primer pocket runout.
Our Concentricity Gauge allows you to easily check the effectiveness of your reloading equipment. It also allows you to check and organize the quality of your factory-loaded ammunition. Starting the bullet straight into the barrel's rifling is essential for accurate shooting. The smallest improvements in your accuracy are worth every penny.
Specifications
Weight: 4.5 lbs
Dimensions (base): 4 inches x 7 inches
Accepts cartridges from 22 rimfire to 50 BMGFeatures
Optional Neck Wall Uniformity Adapter
-

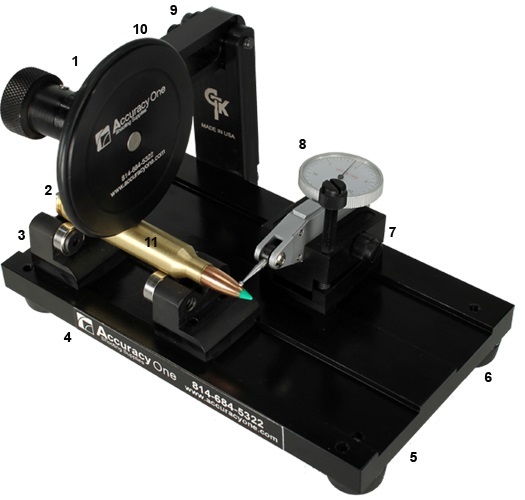

- The Directional Drive Wheel pushes the cartridge or bullet into the stop with equal pressure for accurate, repeatable readings. The replaceable rubber drive ring does not harm the cartridge or bullet.
- Two position bullet/cartridge stop.
- Ultra-high-precision ball bearings provide friction-free movement.
- Heavy steel base with E-coat finish & bolt on rubber feet.
- The indicator stand and roller blocks ride in machined slots and are held in place by N42 Neodymium magnets, which allow for very smooth, tool-free adjustments.
- Indicator stand rides in both machined slots, which allows for both internal and external measurements.
- The Fine Adjustment Horizontal Indicator Stand will allow very smooth and fine adjustments.
- The Indicator Stand will accept horizontal indicators that are .350″ wide or narrower and are 1.75″ to 2.25″ from the indicator contact point to the center of the main body.
- The adjustable mechanical arm stop holds the arm up for one-handed operation.
- Precision Drive Wheel has a 13:1 ratio for .22 rimfire, 7:1 for magnums, and 3.7:1 for 50BMG.
- YouTube Video can be seen here
Write your review
About the ACCURACY ONE CONCENTRICITY GAUGENew Products
More Information
| Type of product | Concentricity |
|---|---|
| Barcode | acc1-concen*** |
| SKU's | acc1-concen*** |
| Brand | Accuracy One |
